Core

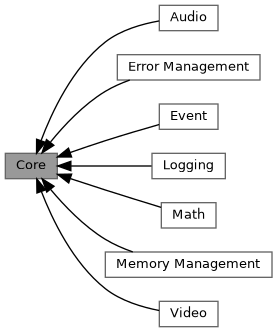

Collaboration diagram for Core:

Topics
	Main Entry Point

Files
file	assert.h

Data Structures
struct	bj_build_info

Macros
#define	BJ_VERSION_VARIANT(version)
#define	BJ_VERSION_MAJOR(version)
#define	BJ_VERSION_MINOR(version)
#define	BJ_VERSION_PATCH(version)
#define	BJ_MAKE_VERSION(major, minor, patch, variant)
#define	BJ_VERSION_MAJOR_NUMBER   0
#define	BJ_VERSION_MINOR_NUMBER   1
#define	BJ_VERSION_PATCH_NUMBER   0
#define	BJ_VERSION_VARIANT_NUMBER   BJ_VERSION_DEV
#define	BJ_VERSION   BJ_MAKE_VERSION(BJ_VERSION_MAJOR_NUMBER, BJ_VERSION_MINOR_NUMBER, BJ_VERSION_PATCH_NUMBER, BJ_VERSION_VARIANT_NUMBER)
#define	BJ_NAME   "Banjo"
#define	BJ_FALSE   ((bj_bool)0)
#define	BJ_TRUE   ((bj_bool)1)

Typedefs
typedef uint32_t	bj_bool

Functions
const struct bj_build_info *	bj_build_information (void)

Convenience typedefs for public API types
By default, Banjo provides typedefs that allow writing type names without the struct or enum keywords (e.g., bj_vec2 instead of struct bj_vec2). To disable these typedefs and use explicit struct/enum keywords everywhere, define BJ_NO_TYPEDEF before including Banjo headers.
typedef enum bj_audio_format	bj_audio_format
typedef enum bj_blit_op	bj_blit_op
typedef enum bj_callback_result	bj_callback_result
typedef enum bj_error_code	bj_error_code
typedef enum bj_event_action	bj_event_action
typedef enum bj_event_type	bj_event_type
typedef enum bj_key	bj_key
typedef enum bj_log_level	bj_log_level
typedef enum bj_pixel_mode	bj_pixel_mode
typedef enum bj_renderer_type	bj_renderer_type
typedef enum bj_seek_origin	bj_seek_origin
typedef enum bj_shader_flag	bj_shader_flag
typedef enum bj_window_flag	bj_window_flag
typedef struct bj_angular_2d	bj_angular_2d
typedef struct bj_cli	bj_cli
typedef struct bj_cli_argument	bj_cli_argument
typedef struct bj_audio_device	bj_audio_device
typedef struct bj_audio_play_note_data	bj_audio_play_note_data
typedef struct bj_audio_properties	bj_audio_properties
typedef struct bj_bitmap	bj_bitmap
typedef struct bj_build_info	bj_build_info
typedef struct bj_button_event	bj_button_event
typedef struct bj_cursor_event	bj_cursor_event
typedef struct bj_enter_event	bj_enter_event
typedef struct bj_error	bj_error
typedef struct bj_event	bj_event
typedef struct bj_key_event	bj_key_event
typedef struct bj_mat3x2	bj_mat3x2
typedef struct bj_mat3x3	bj_mat3
typedef struct bj_mat3x3	bj_mat3x3
typedef struct bj_mat4x3	bj_mat4x3
typedef struct bj_mat4x4	bj_mat4
typedef struct bj_mat4x4	bj_mat4x4
typedef struct bj_memory_callbacks	bj_memory_callbacks
typedef struct bj_particle_2d	bj_particle_2d
typedef struct bj_pcg32	bj_pcg32
typedef struct bj_rect	bj_rect
typedef struct bj_renderer	bj_renderer
typedef struct bj_rigid_body_2d	bj_rigid_body_2d
typedef struct bj_stopwatch	bj_stopwatch
typedef struct bj_stream	bj_stream
typedef struct bj_vec2	bj_vec2
typedef struct bj_vec3	bj_vec3
typedef struct bj_vec4	bj_quat
typedef struct bj_vec4	bj_vec4
typedef struct bj_window	bj_window
#define	BJ_VERSION_RELEASE   0
#define	BJ_VERSION_DEV   1
#define	BJ_VERSION_BETA   2
#define	BJ_VERSION_RC   3

Platform detection
One of these will be defined to indicate the target OS.
#define	BJ_OS_UNKNOWN

Compiler detection
One of these will be defined to indicate the compiler in use. Additionally BJ_COMPILER_NAME and BJ_COMPILER_VERSION are provided.
#define	BJ_COMPILER_NAME   "Doxygen"
#define	BJ_COMPILER_VERSION   0

Build configuration
Exactly one of BJ_BUILD_DEBUG or BJ_BUILD_RELEASE is defined.
#define	BJ_BUILD_RELEASE
#define	BJ_BUILD_DEBUG

Export/visibility helpers
BANJO_EXPORT marks public symbols. BANJO_NO_EXPORT hides symbols.
#define	BANJO_EXPORT
#define	BANJO_NO_EXPORT

Restrict qualifier macro
#define	BJ_RESTRICT   restrict

Inline helper macro
#define	BJ_INLINE   inline

Detailed Description

General-purpose API.

---

Data Structure Documentation

bj_build_info

struct bj_build_info

Structure holding build information of the binary.

Data Fields
bj_bool	backend_alsa	Built with ALSA audio.
bj_bool	backend_cocoa	Built with Cocoa/macOS support.
bj_bool	backend_emscripten	Built with Emscripten support.
bj_bool	backend_mme	Built with Windows MME audio.
bj_bool	backend_win32	Built with Win32 window support.
bj_bool	backend_x11	Built with X11 window support.
bj_bool	checks_abort	Checks abort execution on failure.
bj_bool	checks_log	Checks log failures.
const char *	compiler_name	Compiler name string.
int	compiler_version	Compiler version number.
bj_bool	debug	Non-zero if built with debug info.
bj_bool	fastmath	Built with fast-math optimizations.
bj_bool	log_color	Colored log output enabled.
const char *	name	API name (see BJ_NAME).
bj_bool	pedantic	Extra runtime checks enabled.
uint32_t	version	Packed API version (see BJ_VERSION).

Macro Definition Documentation

BANJO_EXPORT

#define BANJO_EXPORT

BANJO_NO_EXPORT

#define BANJO_NO_EXPORT

BJ_BUILD_DEBUG

#define BJ_BUILD_DEBUG

Set when Banjo was built on debug mode (NDEBUG not defined).

BJ_BUILD_RELEASE

#define BJ_BUILD_RELEASE

Set when Banjo was built on release mode (NDEBUG defined).

BJ_COMPILER_NAME

#define BJ_COMPILER_NAME   "Doxygen"

BJ_COMPILER_VERSION

#define BJ_COMPILER_VERSION   0

BJ_FALSE

#define BJ_FALSE   ((bj_bool)0)

Boolean false value (0).

See also

bj_bool

BJ_TRUE

BJ_INLINE

#define BJ_INLINE   inline

BJ_INLINE expands to an inline specifier appropriate for the toolchain.

If BJ_API_FORCE_INLINE is defined, stronger inlining is requested.

BJ_MAKE_VERSION

#define BJ_MAKE_VERSION	(		major,
			minor,
			patch,
			variant )

Value:

    ((((uint32_t)(major)) << 22U) | (((uint32_t)(minor)) << 12U) | \
     (((uint32_t)(patch)) << 2U) | ((uint32_t)(variant)))

Construct a packed 32-bit version value: [major:10 | minor:10 | patch:10 | variant:2].

Parameters

major	Major version in [0, 1023].
minor	Minor version in [0, 1023].
patch	Patch version in [0, 1023].
variant	Variant type (BJ_VERSION_VARIANT_*).

Returns

Packed version suitable for BJ_VERSION_* macros.

BJ_NAME

#define BJ_NAME   "Banjo"

Library name string.

BJ_OS_UNKNOWN

#define BJ_OS_UNKNOWN

BJ_RESTRICT

#define BJ_RESTRICT   restrict

BJ_RESTRICT expands to the appropriate restrict qualifier per toolchain.

BJ_TRUE

#define BJ_TRUE   ((bj_bool)1)

Boolean true value (1).

See also

bj_bool

BJ_FALSE

BJ_VERSION

#define BJ_VERSION   BJ_MAKE_VERSION(BJ_VERSION_MAJOR_NUMBER, BJ_VERSION_MINOR_NUMBER, BJ_VERSION_PATCH_NUMBER, BJ_VERSION_VARIANT_NUMBER)

Current API version as a packed 32-bit representation.

BJ_VERSION_BETA

#define BJ_VERSION_BETA   2

Beta release (e.g., 0.1.0-beta).

BJ_VERSION_DEV

#define BJ_VERSION_DEV   1

Development build (e.g., 0.1.0-dev).

BJ_VERSION_MAJOR

#define BJ_VERSION_MAJOR

(

version

)

Value:

(((version) >> 22U) & 0x3FFU)

Extract major version from a 32-bit version value.

Parameters

version

Packed version from BJ_MAKE_VERSION.

Returns

Major version in [0, 1023].

BJ_VERSION_MAJOR_NUMBER

#define BJ_VERSION_MAJOR_NUMBER   0

Current major version number.

BJ_VERSION_MINOR

#define BJ_VERSION_MINOR

(

version

)

Value:

(((version) >> 12U) & 0x3FFU)

Extract minor version from a 32-bit version value.

Parameters

version

Packed version from BJ_MAKE_VERSION.

Returns

Minor version in [0, 1023].

BJ_VERSION_MINOR_NUMBER

#define BJ_VERSION_MINOR_NUMBER   1

Current minor version number.

BJ_VERSION_PATCH

#define BJ_VERSION_PATCH

(

version

)

Value:

(((version) >> 2U) & 0x3FFU)

Extract patch version from a 32-bit version value.

Parameters

version

Packed version from BJ_MAKE_VERSION.

Returns

Patch version in [0, 1023].

BJ_VERSION_PATCH_NUMBER

#define BJ_VERSION_PATCH_NUMBER   0

Current patch version number.

BJ_VERSION_RC

#define BJ_VERSION_RC   3

Release candidate (e.g., 0.1.0-rc).

BJ_VERSION_RELEASE

#define BJ_VERSION_RELEASE   0

Version variant types.

Stable release (e.g., 0.1.0).

BJ_VERSION_VARIANT

#define BJ_VERSION_VARIANT

(

version

)

Value:

((version) & 0x3U)

Extract variant from a 32-bit version value.

Parameters

version

Packed version from BJ_MAKE_VERSION.

Returns

Variant in [0, 3].

BJ_VERSION_VARIANT_NUMBER

#define BJ_VERSION_VARIANT_NUMBER   BJ_VERSION_DEV

Current version variant.

Typedef Documentation

bj_angular_2d

typedef struct bj_angular_2d bj_angular_2d

bj_audio_device

typedef struct bj_audio_device bj_audio_device

bj_audio_format

typedef enum bj_audio_format bj_audio_format

bj_audio_play_note_data

typedef struct bj_audio_play_note_data bj_audio_play_note_data

bj_audio_properties

typedef struct bj_audio_properties bj_audio_properties

bj_bitmap

typedef struct bj_bitmap bj_bitmap

bj_blit_op

typedef enum bj_blit_op bj_blit_op

bj_bool

typedef uint32_t bj_bool

Boolean type used throughout the Banjo API.

Defined as a 32-bit unsigned integer for portability and ABI clarity.

See also

BJ_FALSE

BJ_TRUE

bj_build_info

typedef struct bj_build_info bj_build_info

bj_button_event

typedef struct bj_button_event bj_button_event

bj_callback_result

typedef enum bj_callback_result bj_callback_result

bj_cli

typedef struct bj_cli bj_cli

bj_cli_argument

typedef struct bj_cli_argument bj_cli_argument

bj_cursor_event

typedef struct bj_cursor_event bj_cursor_event

bj_enter_event

typedef struct bj_enter_event bj_enter_event

bj_error

typedef struct bj_error bj_error

bj_error_code

typedef enum bj_error_code bj_error_code

bj_event

typedef struct bj_event bj_event

bj_event_action

typedef enum bj_event_action bj_event_action

bj_event_type

typedef enum bj_event_type bj_event_type

bj_key

typedef enum bj_key bj_key

bj_key_event

typedef struct bj_key_event bj_key_event

bj_log_level

typedef enum bj_log_level bj_log_level

bj_mat3

typedef struct bj_mat3x3 bj_mat3

bj_mat3x2

typedef struct bj_mat3x2 bj_mat3x2

bj_mat3x3

typedef struct bj_mat3x3 bj_mat3x3

bj_mat4

typedef struct bj_mat4x4 bj_mat4

bj_mat4x3

typedef struct bj_mat4x3 bj_mat4x3

bj_mat4x4

typedef struct bj_mat4x4 bj_mat4x4

bj_memory_callbacks

typedef struct bj_memory_callbacks bj_memory_callbacks

bj_particle_2d

typedef struct bj_particle_2d bj_particle_2d

bj_pcg32

typedef struct bj_pcg32 bj_pcg32

bj_pixel_mode

typedef enum bj_pixel_mode bj_pixel_mode

bj_quat

typedef struct bj_vec4 bj_quat

bj_rect

typedef struct bj_rect bj_rect

bj_renderer

typedef struct bj_renderer bj_renderer

bj_renderer_type

typedef enum bj_renderer_type bj_renderer_type

bj_rigid_body_2d

typedef struct bj_rigid_body_2d bj_rigid_body_2d

bj_seek_origin

typedef enum bj_seek_origin bj_seek_origin

bj_shader_flag

typedef enum bj_shader_flag bj_shader_flag

bj_stopwatch

typedef struct bj_stopwatch bj_stopwatch

bj_stream

typedef struct bj_stream bj_stream

bj_vec2

typedef struct bj_vec2 bj_vec2

bj_vec3

typedef struct bj_vec3 bj_vec3

bj_vec4

typedef struct bj_vec4 bj_vec4

bj_window

typedef struct bj_window bj_window

bj_window_flag

typedef enum bj_window_flag bj_window_flag

Function Documentation

bj_build_information()

const struct bj_build_info * bj_build_information

(

void

)

Get runtime build information for the loaded Banjo binaries.

The returned pointer is owned by the library and remains valid for the lifetime of the process. The content is immutable.

Returns

Pointer to a struct bj_build_info structure describing the runtime build.
