audio.h File Reference

Basic audio library interface.

#include <banjo/error.h>
#include <banjo/api.h>

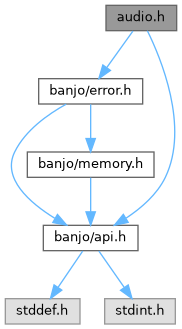

Include dependency graph for audio.h:

Go to the source code of this file.

Data Structures
struct	bj_audio_properties_t
	Describe properties of an audio device. More...
struct	bj_audio_play_note_data_t
	Define parameters for generating simple waveforms. More...
struct	bj_audio_layer_t
	Represent an audio backend (ALSA, MME, etc). More...
struct	bj_audio_layer_create_info
	Declare a backend and its constructor function. More...

Macros
#define	BJ_AUDIO_FORMAT_WIDTH(x)
#define	BJ_AUDIO_FORMAT_FLOAT(x)
#define	BJ_AUDIO_FORMAT_INT(x)
#define	BJ_AUDIO_FORMAT_BIG_ENDIAN(x)
#define	BJ_AUDIO_FORMAT_SIGNED(x)

Typedefs
typedef struct bj_audio_device_t	bj_audio_device
	Opaque handle to an audio device instance.
typedef enum bj_audio_format_t	bj_audio_format
	Describes how and audio device encodes sound samples.
typedef struct bj_audio_properties_t	bj_audio_properties
	Describe properties of an audio device.
typedef void(*	bj_audio_callback_t) (void *buffer, unsigned frames, const bj_audio_properties *audio, void *user_data, uint64_t base_sample_index)
	Define a callback for generating audio samples.
typedef struct bj_audio_play_note_data_t	bj_audio_play_note_data
	Define parameters for generating simple waveforms.
typedef struct bj_audio_layer_t	bj_audio_layer
	Represent an audio backend (ALSA, MME, etc).

Enumerations
enum	bj_audio_format_t { BJ_AUDIO_FORMAT_UNKNOWN = 0x0000 , BJ_AUDIO_FORMAT_INT16 = 0x8010 , BJ_AUDIO_FORMAT_F32 = 0x8120 }
	Describes how and audio device encodes sound samples. More...

Functions
bj_audio_device *	bj_open_audio_device (const bj_audio_properties *p_properties, bj_audio_callback_t p_callback, void *p_callback_user_data, bj_error **p_error)
	Open the default audio device for playback.
void	bj_close_audio_device (bj_audio_device *p_device)
	Close an audio device and release all associated resources.
void	bj_audio_device_play (bj_audio_device *p_device)
	Resume audio playback.
void	bj_audio_device_pause (bj_audio_device *p_device)
	Pause audio playback.
void	bj_audio_device_reset (bj_audio_device *p_device)
	Reset the playback stream sample index to 0.
void	bj_audio_device_stop (bj_audio_device *p_device)
	Stop playback and reset the sample stream.
bj_bool	bj_audio_device_is_playing (const bj_audio_device *p_device)
	Query whether the device is currently playing audio.
void	bj_audio_play_note (void *buffer, unsigned frames, const bj_audio_properties *audio, void *user_data, uint64_t base_sample_index)
	Generate a basic waveform tone using a built-in callback.
